Lift Out

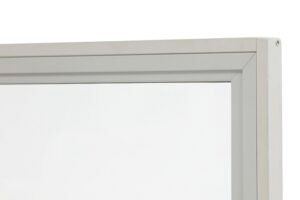

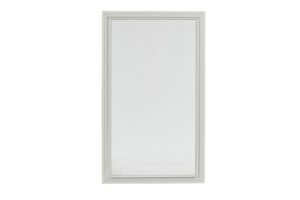

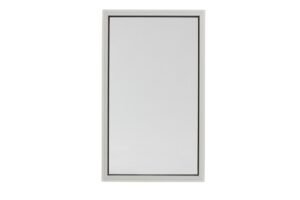

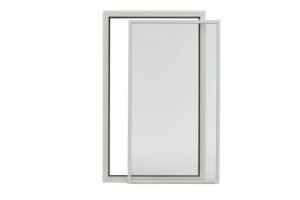

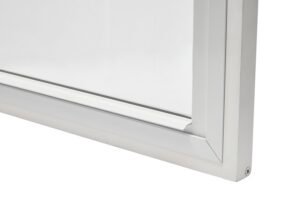

Granada lift-out units offer a practical, cost-effective solution for windows that require occasional access. Each removable panel sits within its own slimline aluminium frame and can be lifted out easily using the Easy Lift Fin.
Face-fixed or reveal-fixed, these units are ideal for decorative or non-opening windows, providing discreet, unobstructed views while enhancing acoustic and thermal performance. Perfect for both commercial and residential applications, lift-out secondary glazing combines convenience, durability, and a clean, unobtrusive design.
Ideal for both commercial and residential projects, lift-out units combine convenience, durability, and a clean, unobstructed view, offering a flexible secondary glazing solution tailored to your requirements.
Cost-Effective Solution
An economical solution for enhancing existing windows without significant alterations.
Shaped Window Compatible
Versatile for shaped or arched windows – suitable for complex openings and heritage applications.
Removable Panels
Allow simple access for cleaning and maintenance of the primary window.
Sizes
Note: all sizes are for guidance only, and depend on several factors (including glass and subframe). Units and styles outside of those listed are sometimes possible – please contact us for advice.
Lift Out Range
| Style | Max Width | Max Height | Max Weight |
|---|---|---|---|
| LO Lift Out Unit | 3,220mm | 3,307mm | 50KG |
Installation Options
| Product Range | Glass Options | Max. Window Size (Including 16mm Timber) | Installation Options | |||
|---|---|---|---|---|---|---|
| Width (mm) | Height (mm) | Area (m²) | Face Fix Through Timber | Reveal Fix Through Frame | ||
| Classic | 4.0mm tough | 2070 | 2057 | 1.7 | TIM-25×16 | TIM-25×16 |
| Enhanced | 6.0mm tough | 3220 | 3307 | 3.6 | TIM-25×16 | TIM-25×16 |
| Enhanced | 6.4mm Laminate | 3220 | 3307 | 3.4 | TIM-25×16 | TIM-25×16 |
| Enhanced | 6.8mm Laminate | 3220 | 3307 | 3.2 | TIM-25×16 | TIM-25×16 |
| Enhanced | 8.8mm Laminate | 3220 | 3307 | 2.5 | TIM-25×16 | TIM-25×16 |
| Enhanced | 10.8mm Laminate | 3220 | 3307 | 2.0 | TIM-25×16 | TIM-25×16 |
| Product Range | Glass Options | Max. Window Size (Including 16mm Timber) HS2 | HS3 | HS4 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Width (mm) | Height (mm) | Area (m²) | Width (mm) | Height (mm) | Area (m²) | Width (mm) | Height (mm) | Area (m²) | ||
| Classic | 4.0mm tough | 2534 | 1968 | 3.0 | 3762 | 1968 | 4.5 | 4934 | 1968 | 6.0 |
| Enhanced | 6.0mm tough | 4934 | 2068 | 10.2 | 4934 | 2068 | 10.2 | 4934 | 2068 | 10.2 |
| Enhanced | 6.4mm Laminate | 4934 | 2068 | 10.0 | 4934 | 2068 | 10.2 | 4934 | 2068 | 10.2 |
| Enhanced | 6.8mm Laminate | 4934 | 2068 | 9.4 | 4934 | 2068 | 10.2 | 4934 | 2068 | 10.2 |
| Enhanced | 8.8mm Laminate | 4934 | 2768 | 7.3 | 4934 | 2768 | 10.9 | 4934 | 2768 | 13.7 |
| Enhanced | 10.8mm Laminate | 4934 | 2768 | 5.9 | 4934 | 2768 | 8.9 | 4934 | 2768 | 11.9 |
You can choose from a comprehensive palette of more than 200 powder-coated RAL colours to achieve a precise match with your Granada secondary glazing system. Suitable for new developments, heritage buildings, and complex commercial environments, our finishes are specified to meet the requirements of each project.
Other Secondary Glazing Options
Frequently Asked Questions
What colours are the frames available in?
Our secondary glazing products are manufactured from durable aluminium and powder-coated in-house for a high-quality, long-lasting finish. We hold a selection of stocked colours, including:
- Van Dyke Brown (BS 08 B29, Satin)
- Cream (RAL9001, Satin)
- Grey (RAL7016, Satin)
- Black (RAL9005, Satin)
- Granada White (RAL9003, Satin)
To ensure short lead times and offer maximum flexibility, Granada has invested in an in-house powder coating line. This allows us to provide fully customisable aluminium frames in over 200 RAL colours, giving customers the freedom to match any design aesthetic while maintaining the durability and performance expected from our secondary glazing systems.
Are there any guarantees or warranties?
Our secondary glazing is built to last and comes with a comprehensive warranty for peace of mind. All frames and glazing are covered by a five-year warranty, with a two-year warranty on moving parts.
Should you experience any issues, our dedicated customer care team is available to assist.
